400W MPPT Off-Grid Solar Kit for Reliable 12V Systems

Package Includes
4x 100W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
4x Z Mounting Bracket
1x 1.5M Tray Cable
Inverter & Battery Options-
1.1kW Inverter & 1.2kWh Lithium Battery (optional)
with
1x 1100W 12V-110V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery
2kW Inverter & 2.4kWh Lithium Battery (optional)
with
1x 2000W 12V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

100W Monocrystalline Solar Panel

Rated Power: 100W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 5.20A	Maximum current: 4.95A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Weight: 14.55lbs(6.6kg)
Size: 89558535mm (35.2423.031.37in)

40A MPPT Solar Charge Controller

Battery voltage：12V/24V	Max Solar Input Power：560/1120W
Charging mode：MPPT	Rated Load Current：20A
Charge Efficiency (Peak)：97%	Self-Consumption：1~2W
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	Size：22014864mm/8.75.82.5inch
Max Charge current：40A	Weight：1.5KG
Max.PV Open-Circuit Voltage：<100V

1100W 12V Off Grid Inverter

Output Continuous Watts(W): 1100W+18W USB	Surge Capacity (PeakPower): 2200W
Rated Input DC (V,A): 12V Battery, 100A	Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1	Rated Output AC (V,A): 115Vac±10%, 9.5A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)	No Load Current: <1A
Optimum Efficiency: 85% min	Fuse (A): 30A*4
FuseType: Internal Blade	Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max	Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95%	Cooling System: Thermo Fan
THD: <4.5%	Dimensions (LWH): 13.59.84.1 in
Assembled Weight (kg): 8.05 lbs

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1200Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 80A/100A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260168209mm（10.26.68.2inch）
Battery Weight: 9.55kg/21 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.

10kw-

400W 12V (4x100W) Complete MPPT Off Grid Solar Kit

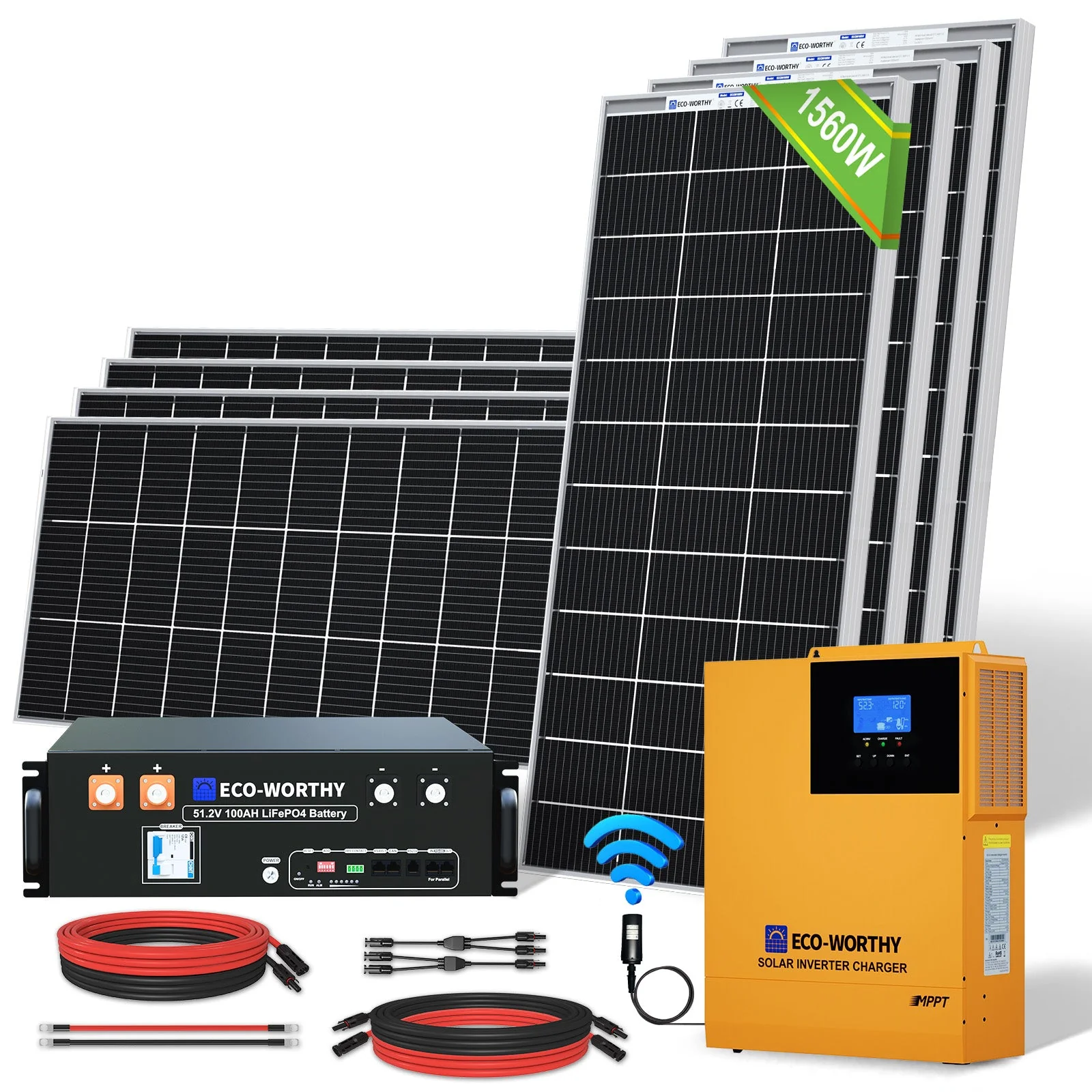

1560W 48V (8x195W) Complete Off Grid Solar Kit

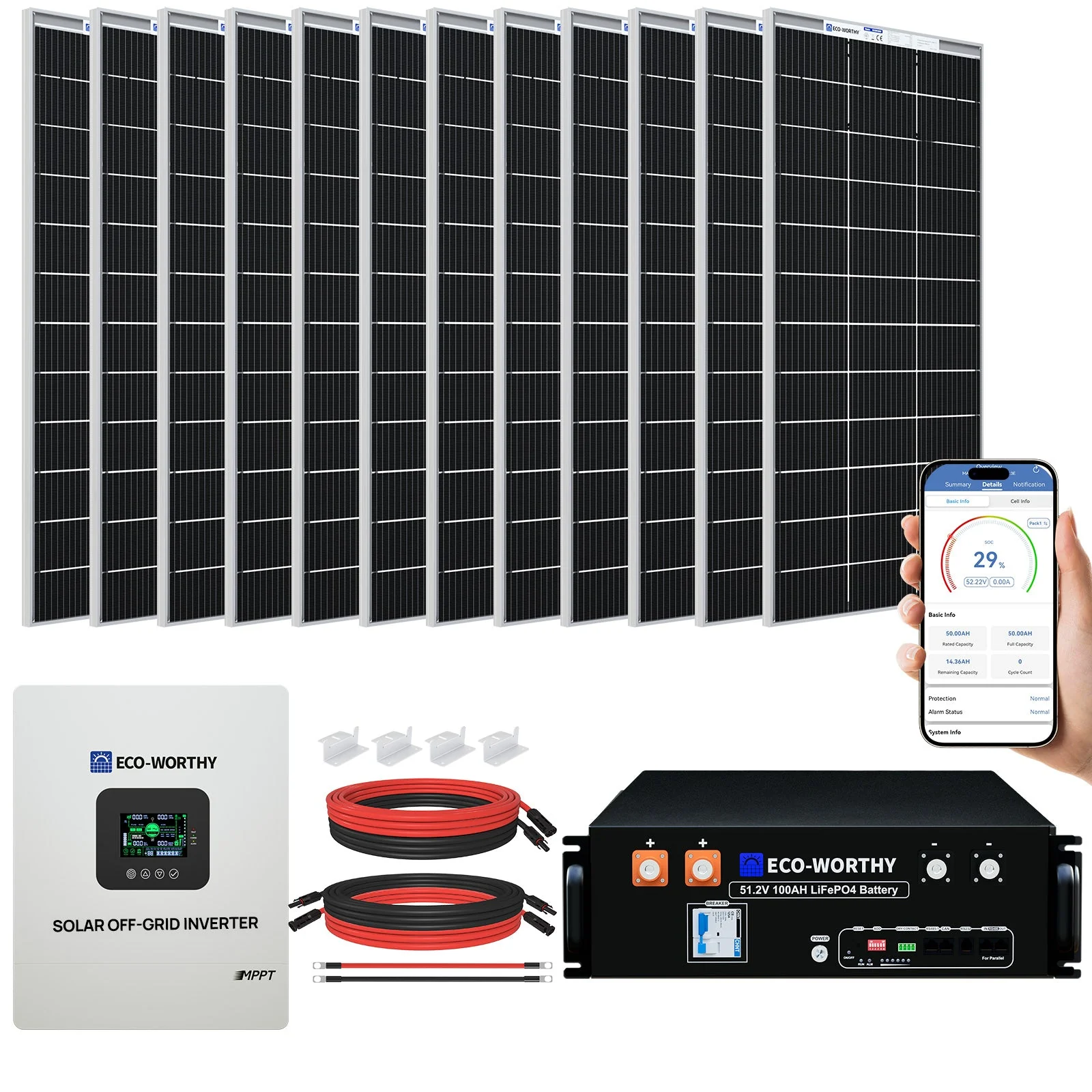

2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit
